Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,2 kg
Front travel
203mm
Rear travel
200mm

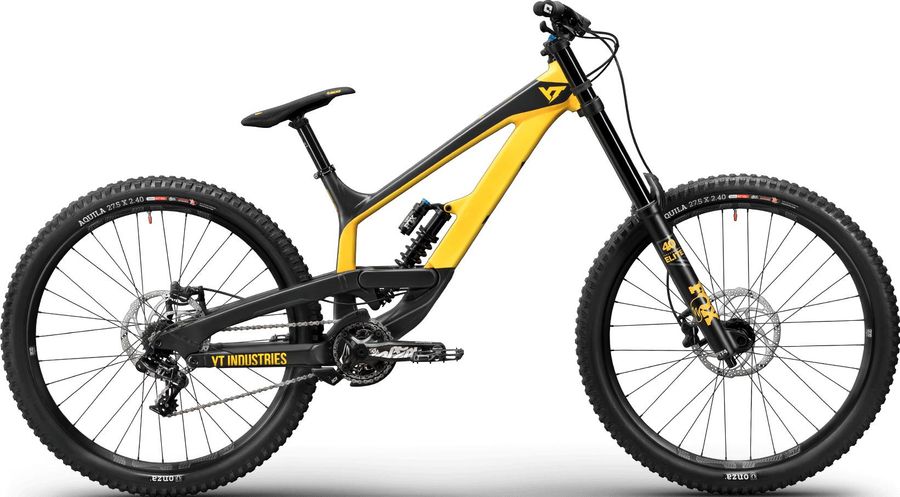

About the YT TUES AL 2018
The YT TUES AL 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 17,2 kg.
Features
Boost 110
More info
Boost 110
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
ODI Elite Motion V2.1 Lock On
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face CHESTER 35 50mm, Manual
|
|---|---|
|
Saddle
|
SDG I-FLY 2.0 YELLOW YT Custom | Yellow
|
|
Headset
|
Acros AZX-257 High Cap
|
|
Seatpost
|
SDG I-Beam Alloy 30.9mm | 300mm Length
|
|
Handlebar
|
Race Face CHESTER 35 35mm Rise | 780mm Width, Manual
|
|
Brake lever
|
SRAM Code R
|
|
Brakes
|
TRP G-Spec
|
|
Crankset
|
Race Face CHESTER 165mm | 34T, Manual
|
|---|---|
|
Shifter
|
SRAM GX 7-Speed, Manual
|
|
Chain guide
|
e*thirteen LG1+ I05 | 32-34T, Manual
|
|
Bottom bracket
|
Race Face BB
|
|
Rear derailleur
|
SRAM GX DH
7s
|
|
|
|
|
Cassette
|
E*thirteen 7 speed
|
|
Chain
|
SRAM PC-1130
259 g
|
|
|
|
|
Frame
|
TUES ALLOY 27,5" 7005-T6 aluminium frame | V4L Virtual 4-Link rear suspension | 150x12mm thru axle | down tube protection
|
|---|---|
|
Rear suspension
|
Fox Van Performance
|
|
Front suspension
|
Fox 40 Float Performance Elite
|
|
Rims
|
e*thirteen LG1 27,5“ x 30mm | 32 hole | 110x20mm | 150x12mm
|
|---|---|
|
Tires
|
ONZA Aquila 27.5“ x 2.40
|
|
Rear hub
|
e*thirteen LG1, Front: 20mm x 110mm, Rear: 12mm x 150mm
|
|
Front hub
|
e*thirteen LG1, Front: 20mm x 110mm, Rear: 12mm x 150mm
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
420,0
|
420,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
584,0
|
606,0
|
633,0
|
659,0
|
682,0
|
|
d
Head tube length
|
100,0
|
105,0
|
115,0
|
123,0
|
129,0
|
|
e
Head tube angle
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
|
f
Rake
|
52,0
|
52,0
|
52,0
|
52,0
|
48,0
|
|
g
Trail
|
119,0
|
119,0
|
119,0
|
119,0
|
124,0
|
|
h
Wheelbase
|
1199,0
|
1220,0
|
1248,0
|
1278,0
|
1302,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
7,0
|
7,0
|
7,0
|
7,0
|
7,0
|
|
k
Stack height
|
601,0
|
605,0
|
614,0
|
621,0
|
636,0
|
|
l
Reach
|
410,0
|
429,0
|
452,0
|
474,0
|
495,0
|
|
m
Standover height
|
707,0
|
709,0
|
714,0
|
723,0
|
727,0
|
|
x
Bottom bracket height
|
351,0
|
351,0
|
351,0
|
351,0
|
351,0
|
|
y
Front center
|
764,0
|
785,0
|
813,0
|
838,0
|
862,0
|
