Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,4 kg
Front travel
203mm
Rear travel
203mm
About the YT TUES Comp 2021

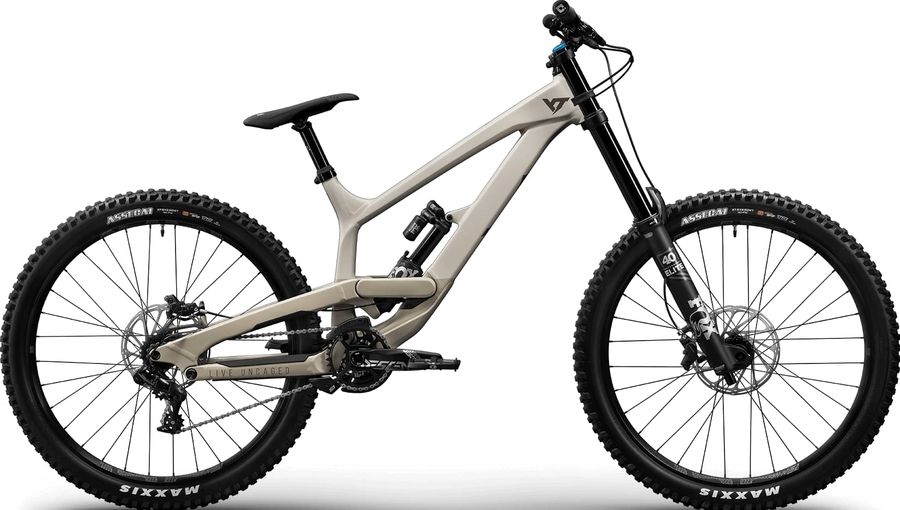

The YT TUES Comp 2021 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain. Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 16,4 kg.
Features
Boost 110
More info
Boost 110
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
ODI Elite Motion V 2.1 Lock- On
|
|---|---|
|
Pedals
|
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
|
|
Steam
|
Race Face ATLAS 35 50 mm
|
|---|---|
|
Saddle
|
SDG I-FLY 2.0 YT Custom
|
|
Headset
|
Acros AZX-257 High Cap
|
|
Seatpost
|
SDG I-Beam Alloy 30.9 mm | 300 mm Length
|
|
Handlebar
|
Race Face ATLAS 35 35 mm Rise | 800 mm Width
|
|
Brakes
|
SRAM Code R
Hydraulic
|
|
|
|
|
Crankset
|
SRAM Descendant DH 165 x 83 mm | 34 T
|
|---|---|
|
Shifter
|
SRAM GX 7- Speed
|
|
Chain guide
|
E13 LG1 Plus I05 | 32- 34 T
|
|
Rear derailleur
|
SRAM GX DH
7s
|
|
|
|
|
Cassette
|
E*thirteen 7 speed
|
|
Frame
|
TUES ALLOY 27,5" 6061 T6 aluminium frame | V4L Virtual 4-Link rear suspension | 150x12mm thru axle | down tube protection
|
|---|---|
|
Front suspension
|
Fox 40 Float Performance Elite
|
|
Rear suspension
|
Fox Float X2 Performance
|
|
Rims
|
E13 LG1 DH 27,5" x 30 mm | 110 x 20 mm | 150 x 12 mm
|
|---|---|
|
Tires
|
MAXXIS Assegai 3C MaxxGrip 27,5" x 2.5 | DH | TR
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
420,0
|
420,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
584,0
|
606,0
|
633,0
|
659,0
|
682,0
|
|
d
Head tube length
|
100,0
|
105,0
|
115,0
|
123,0
|
129,0
|
|
e
Head tube angle
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
|
f
Rake
|
52,0
|
52,0
|
52,0
|
52,0
|
48,0
|
|
g
Trail
|
119,0
|
119,0
|
119,0
|
119,0
|
124,0
|
|
h
Wheelbase
|
1199,0
|
1220,0
|
1248,0
|
1278,0
|
1302,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
7,0
|
7,0
|
7,0
|
7,0
|
7,0
|
|
k
Stack height
|
601,0
|
605,0
|
614,0
|
621,0
|
636,0
|
|
l
Reach
|
410,0
|
429,0
|
452,0
|
474,0
|
495,0
|
|
m
Standover height
|
707,0
|
709,0
|
714,0
|
723,0
|
727,0
|
|
x
Bottom bracket height
|
351,0
|
351,0
|
351,0
|
351,0
|
351,0
|
|
y
Front center
|
764,0
|
785,0
|
813,0
|
838,0
|
862,0
|
