Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,5 kg
Front travel
203mm
Rear travel
203mm

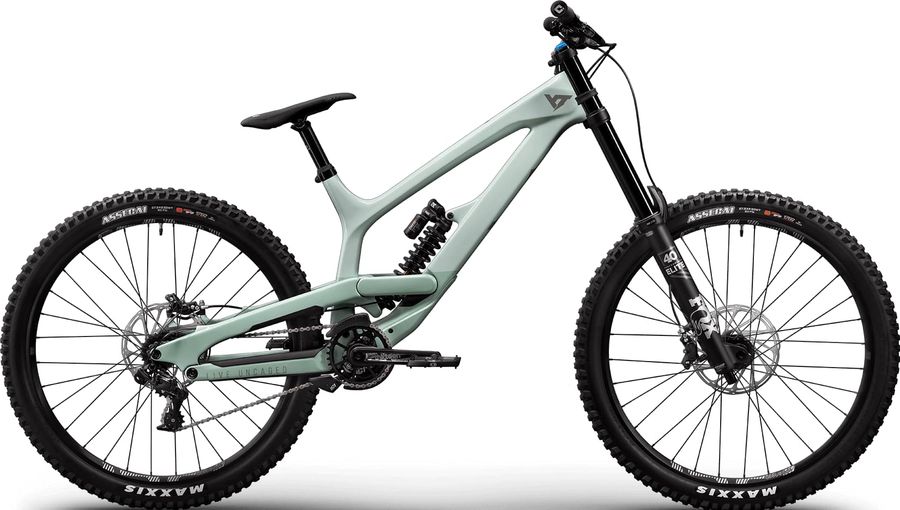

About the YT TUES Pro 2021
The YT TUES Pro 2021 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain. Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 15,5 kg.
Features
Boost 110
More info
Boost 110
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
ODI Elite Motion V 2.1 Lock- On
|
|---|---|
|
Pedals
|
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
|
|
Steam
|
Renthal Integra 35 50 mm
|
|---|---|
|
Saddle
|
SDG I-FLY 2.0 YT Custom
|
|
Headset
|
Acros AZX-255 High Cap
|
|
Seatpost
|
SDG I-Beam Alloy 30.9 mm | 300 mm Length
|
|
Handlebar
|
Renthal Fatbar 35 30mm Rise | 800 mm Width
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
E13 LG1 Plus 165 x 83 mm | 34 T
|
|---|---|
|
Shifter
|
SRAM X01 7- Speed
|
|
Chain guide
|
E13 LG1 Plus I05 | 32- 34 T
|
|
Cassette
|
E*thirteen 7 speed
|
|
Rear derailleur
|
SRAM X01 DH
10s, 7s
|
|
|
|
|
Frame
|
TUES CARBON 27,5" high modular carbonfiber frame | V4L Virtual 4-Link rear suspension | 150x12mm thru axle | down tube/seat stay/chain stay protection
|
|---|---|
|
Front suspension
|
Fox 40 Float Performance Elite
|
|
Rear suspension
|
Fox DHX2 Factory
|
|
Rims
|
E13 LG1 Plus DH 27,5" x 30 mm | 110 x 20 mm | 150 x 12 mm
|
|---|---|
|
Tires
|
MAXXIS Assegai 3C MaxxGrip 27,5" x 2.5 | DH | TR
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
420,0
|
420,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
584,0
|
606,0
|
633,0
|
659,0
|
682,0
|
|
d
Head tube length
|
100,0
|
105,0
|
115,0
|
123,0
|
129,0
|
|
e
Head tube angle
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
63,5º
|
|
f
Rake
|
52,0
|
52,0
|
52,0
|
52,0
|
48,0
|
|
g
Trail
|
119,0
|
119,0
|
119,0
|
119,0
|
124,0
|
|
h
Wheelbase
|
1199,0
|
1220,0
|
1248,0
|
1278,0
|
1302,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
7,0
|
7,0
|
7,0
|
7,0
|
7,0
|
|
k
Stack height
|
601,0
|
605,0
|
614,0
|
621,0
|
636,0
|
|
l
Reach
|
410,0
|
429,0
|
452,0
|
474,0
|
495,0
|
|
m
Standover height
|
707,0
|
709,0
|
714,0
|
723,0
|
727,0
|
|
x
Bottom bracket height
|
351,0
|
351,0
|
351,0
|
351,0
|
351,0
|
|
y
Front center
|
764,0
|
785,0
|
813,0
|
838,0
|
862,0
|
