BikeWise

Bianchi Duel 27S 2019

MTB Cross Country
2019 / 2020
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

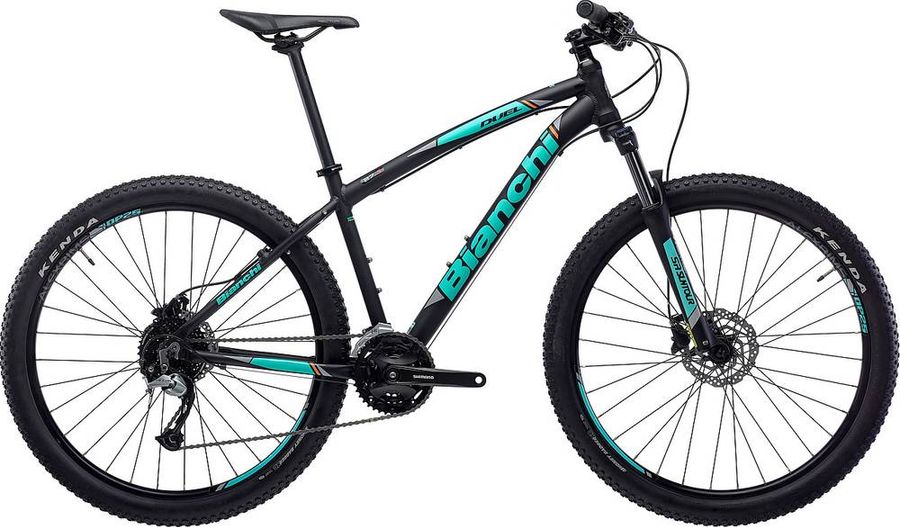

Bianchi Duel 27S 2019

About the Bianchi Duel 27S 2019

The Bianchi Duel 27S 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes.

Features

The Bianchi Duel 27S 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
Tec Rector
Discs
Shimano SM-RT10 160mm
Seatpost
Tec Alloy
Steam
Tec Alloy
Handlebar
Tec Alloy
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Chain
KMC 9v
Bottom bracket
Shimano BB-UN100
Front derailleur
Shimano Acera FD-M3000
action.top_swing
applicable_top_mid_tooth_difference
10T
cable_route_type.dual_pull
Chain guide finish
Chrome plated
Chain guide material
Steel
Primary color
Series color
Compatible chain
HG 9-speed
front_clamp_band.finish
Painted
front_clamp_band.material
Steel
Inner link finish
Painted
Inner link material
Steel
Model
FD-M3000-TS6
Outer link finish
Painted
Outer link material
Steel
Rear clamp band base bracket finish
Painted
Rear clamp band base bracket material
Steel
Stroke adjusting screw finish
Zinc plated
Stroke adjusting screw material
Steel
Total capacity
18T
Rear derailleur
Shimano Acera M313
Shifter
Shimano Acera SL-3000
Cassette
Shimano CS-HG200
Crankset
Shimano FC-MT100
Frameset
Front suspension
SR Suntour XCM
Frame
Bianchi 27,5" Alumínio
Wheels
Rear hub
Formula CL-1422
Tires
Kenda Honey Badger XC
Front hub
Formula CL-1420

Geometry

Size 13" 15" 17" 19" 21"
a
Seat tube length
330,0
381,0
432,0
483,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
533,0
558,0
578,0
603,0
623,0
d
Head tube length
110,0
110,0
110,0
110,0
110,0
e
Head tube angle
70,0º
71,0º
71,0º
71,0º
71,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
-
-
-
-
-
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
50,0
k
Stack height
589,0
593,0
603,0
607,0
612,0
l
Reach
358,0
382,0
399,0
422,0
441,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
305,0
305,0
305,0
305,0
305,0
y
Front center
-
-
-
-
-
