Scott Spark RC 900 Pro 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,1 kg
Front travel
110mm
Rear travel
100mm

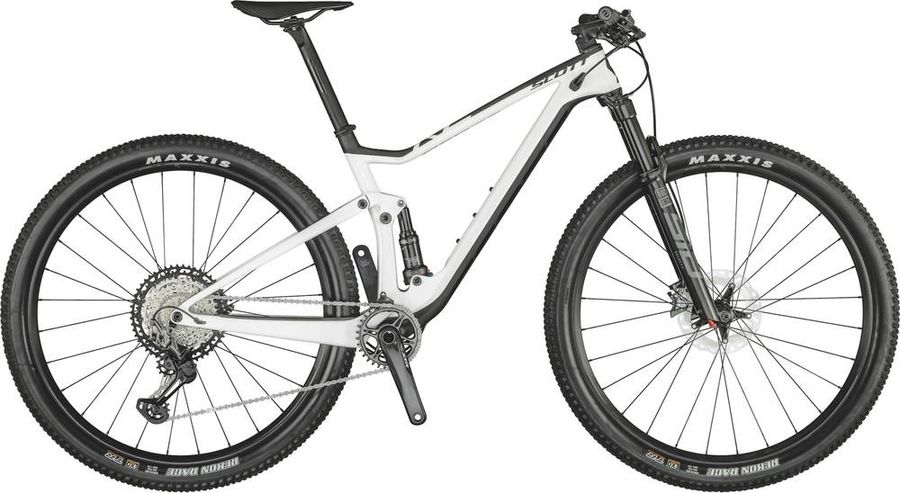

Scott Spark RC 900 Pro 2021

About the Scott Spark RC 900 Pro 2021

The Scott Spark RC 900 Pro 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 11,1 kg.

Features

The Scott Spark RC 900 Pro 2021 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Discs
Shimano RT-M800
Seatpost
Syncros Duncan 1.0 Carbon 31.6x400mm
Headset
Syncros Pro Drop in / Tapered 1.5"-1 1/8"
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Handlebar
Scott Syncros Fraser 1.0 Carbon / 9° / 740mm
Steam
Syncros XR1.5 -8° / 31.8mm / 1 1/8"
Saddle
Syncros Belcarra Regular 1.5 Titanium
Drivetrain
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Crankset
Shimano XTR FC-M9120-1 12s
Chain line (mm)
52
Chainring combination
30T, 32T, 34T, 36T, 38T
Primary color
Series color
Compatible bottom bracket type (outboard)
Compatible chain
HG 12-speed
Crank arm finish
Anodized
Crank arm material
Aluminum
crank_arm_length_mm.165
crank_arm_length_mm.170
crank_arm_length_mm.175
Crank axle finish
Plated
Crank axle material
Steel
Hollowtech II
Model
FC-M9120-1
Pitch circle diameter
Direct
Q factor (mm)
168
Speeds
12
Recommended bottom bracket (press fit)
SM-BB94-41A
Recommended bottom bracket (threaded normal)
SM-BB93
Spider gear arms
4
Shifter
Shimano XTR SL-M9100 117 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
117 ( /pc)
Base cover finish
Painted
Base cover material
CFRP
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
12-speed
Compatible with I spec
Main lever body finish
Painted
Main lever body material
Aluminum
Max multiple shifts main lever rear
4
Model
SL-M9100-R
Mount type
Clamp band
Optical gear display
Without
Speeds
12
Release function
2-WAY RELEASE
release_lever_body.material
CFRP
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Anodized
Shifting lever bracket material
Aluminum
Shifting lever cable finish
Polymer-coated
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Bottom bracket
Shimano SM-BB71-41
Adapter material
Resin
Hollowtech II (press fit)
Model
SM-BB71-41
Press fit bottom bracket shell width (mm)
104.5
107
89.5
92
Spacer material
Resin
Frameset
Front suspension
RockShox SID Select+ RL3 Air 110mm
Frame
Scott Spark RC Carbon
Rear suspension
Fox NUDE EVOL Trunnion / Travel 100-70-Lockout / 165X40mm
Wheels
Tires
Maxxis Rekon Race 29x2.35"
Rims
Syncros Silverton 1.5 CL

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
563,0
593,0
623,0
643,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
90,9
90,9
90,9
90,9
h
Wheelbase
1090,7
1120,7
1151,6
1172,6
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
50,5
50,5
50,5
50,5
k
Stack height
579,9
579,9
589,2
598,5
l
Reach
392,5
422,5
449,8
467,1
m
Standover height
732,0
730,0
749,0
780,0
x
Bottom bracket height
319,5
319,5
319,5
319,5
y
Front center
668,0
697,0
728,0
749,0
