Specialized Fuse Comp Carbon 27.5+ 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

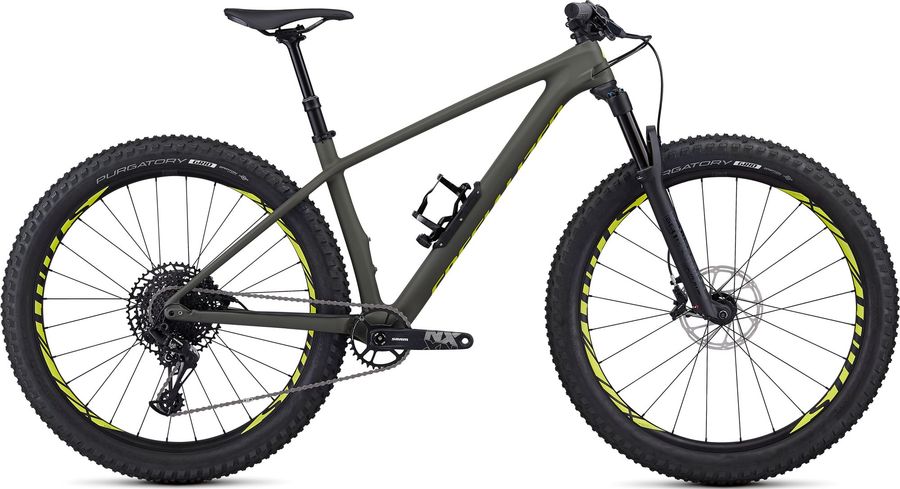

Specialized Fuse Comp Carbon 27.5+ 2019

About the Specialized Fuse Comp Carbon 27.5+ 2019

The Specialized Fuse Comp Carbon 27.5+ 2019 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Fuse Comp Carbon 27.5+ 2019 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Dirt
Components
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Saddle
Specialized Henge Comp
Steam
Specialized Trail
Drivetrain
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Crankset
SRAM NX Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum, Steel
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-NX-1-B1
Name
NX Eagle Crankset
Speeds
11/12
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Frame
Specialized FACT 10m carbon
Wheels
Rims
Specialized Stout XC 27.5
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Tires
Specialized Purgatory Grid 27.5x3.0"

Geometry

Size S M L XL
a
Seat tube length
394,0
434,0
470,0
523,0
b
Seat tube angle
74,0º
73,0º
73,0º
73,0º
c
Top tube length
575,0
607,0
634,0
657,0
d
Head tube length
95,0
95,0
120,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1114,0
1134,0
1164,0
1189,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
51,0
51,0
51,0
51,0
k
Stack height
610,0
610,0
634,0
652,0
l
Reach
400,0
420,0
440,0
458,0
m
Standover height
746,0
770,0
796,0
835,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
