Trek E-Caliber 9.9 XX1 AXS 2021

E-Bike
MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
15,77 kg
Front travel
120mm
Rear travel
60mm
Price
$12,699.99

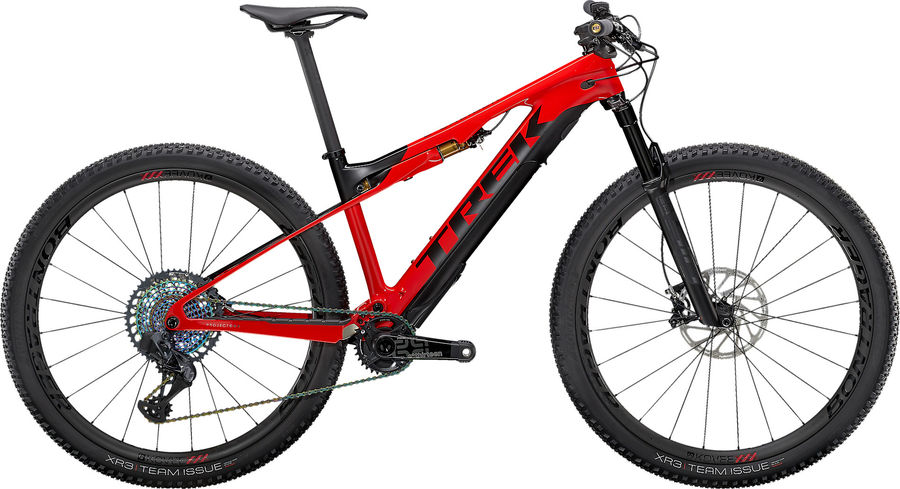

Trek E-Caliber 9.9 XX1 AXS 2021

About the Trek E-Caliber 9.9 XX1 AXS 2021

The Trek E-Caliber 9.9 XX1 AXS 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 15,77 kg.

Features

The Trek E-Caliber 9.9 XX1 AXS 2021 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Chunky
Components
Steam
Size: S, M, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length
Saddle
Bontrager P3 Verse Pro, carbon rails, 145mm width
Battery
Size: S, M, L, XL, Fazua Evation 1.0, 250Wh; Size: S, M, L, XL, Fazua Evation Drive Pack, 20mph max assist; Size: S, M, L, XL, Fazua Evation charger
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: S, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 330mm length; Size: M, L, XL, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 400mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
Discs
Size: S, M, L, XL, Shimano MT900, 203mm, centerlock; Size: S, M, L, XL, Shimano EM910, 180mm, centerlock
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Size: S, M, L, E*thirteen E*spec Race Carbon, 34T, 170mm length; Size: XL, E*thirteen E*spec Race Carbon, 34T, 175mm length
Motor
Size: S, M, L, XL, Fazua Evation 1.0, 250Wh; Size: S, M, L, XL, Fazua Evation Drive Pack, 20mph max assist; Size: S, M, L, XL, Fazua Evation charger
Shifter
SRAM Eagle AXS, wireless, 12-speed
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Rear suspension
Fox Factory
Wheels
Rims
Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle
Tires
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
419,0
470,0
508,0
b
Seat tube angle
72,3º
72,6º
72,8º
72,8º
c
Top tube length
574,0
611,0
642,0
664,0
d
Head tube length
90,0
100,0
105,0
110,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1120,0
1159,0
1191,0
1213,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
603,0
612,0
616,0
621,0
l
Reach
399,0
434,0
464,0
484,0
m
Standover height
762,0
762,0
762,0
762,0
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
684,0
723,0
754,0
776,0
