Trek Slash 8 2020

MTB Enduro
2019 / 2020 / 2021
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,78 kg
Front travel
160mm
Rear travel
150mm

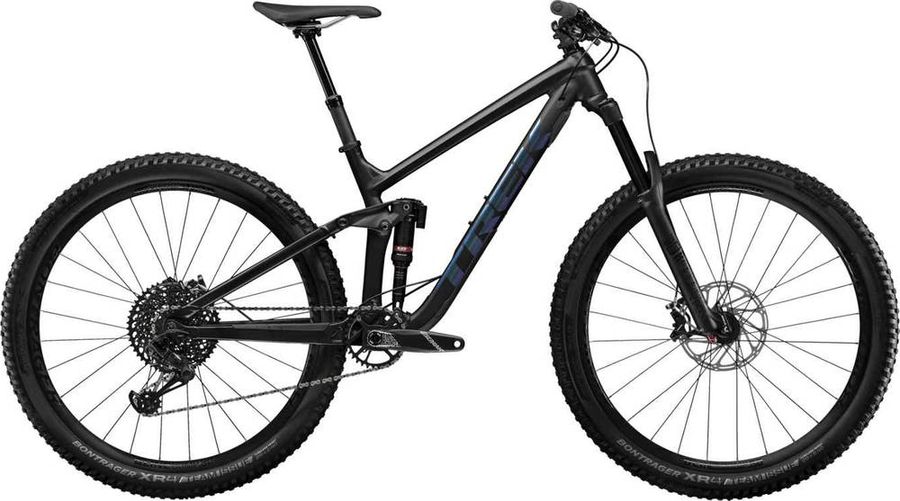

Trek Slash 8 2020

About the Trek Slash 8 2020

The Trek Slash 8 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,78 kg.

Features

The Trek Slash 8 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite
Components
Handlebar
Bontrager Line, 35mm, 27.5mm rise
Saddle
Bontrager Arvada
Headset
Trek Knock Block Integrated
Seatpost
Bontrager Line Dropper
Discs
SRAM CenterLine 200mm
Steam
Bontrager Line, 35mm, Knock Block
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Bottom bracket
SRAM DUB PressFit BB92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Crankset
Truvativ Descendant 6k Eagle DUB 11/12s 717 g
BB compatibility
DUB BSA73
DUB PF89.5
DUB PF92
DUB PF30 MTB73
DUB BB30 MTB73
DUB:BSA73
PF89.5
PF92
PF30 MTB73
BB30 MTB73
BSA MTB68SP
BB spindle interface
DUB
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm
Chainring material
Aluminum, Steel
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-DESC-6K-B1
Name
DESCENDANT 6K DUB™ Crankset
Speeds
11/12
Weight
717
Frameset
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Frame
Trek Alpha Platinum Aluminum
Wheels
Tires
Bontrager XR5 Team Issue, 29x2.60''
Rims
Bontrager Line Comp 30

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,9º
74,4º
74,9º
74,4º
74,9º
74,4º
74,9º
74,4º
74,9º
74,4º
c
Top tube length
574,0
576,0
589,0
591,0
605,0
607,0
620,0
621,0
645,0
647,0
d
Head tube length
100,0
100,0
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
65,6º
65,1º
65,6º
65,1º
65,6º
65,1º
65,6º
65,1º
65,6º
65,1º
f
Rake
51,0
52,0
51,0
52,0
51,0
51,0
52,0
51,0
52,0
52,0
g
Trail
114,0
117,0
114,0
117,0
114,0
117,0
114,0
117,0
114,0
117,0
h
Wheelbase
1165,0
1166,0
1180,0
1181,0
1197,0
1198,0
1213,0
1213,0
1241,0
1242,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
21,0
28,0
21,0
28,0
21,0
28,0
21,0
28,0
21,0
28,0
k
Stack height
602,0
606,0
602,0
606,0
607,0
611,0
612,0
616,0
625,0
629,0
l
Reach
410,0
404,0
425,0
419,0
440,0
434,0
453,0
447,0
475,0
469,0
m
Standover height
740,0
734,0
753,0
747,0
759,0
753,0
764,0
758,0
774,0
768,0
x
Bottom bracket height
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
y
Front center
739,0
738,0
754,0
753,0
771,0
770,0
787,0
785,0
815,0
814,0
