BikeWise

Trek Powerfly 5 2019

E-Bike
MTB Cross Country
2019 / 2020
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
22,91 kg
Front travel
100mm

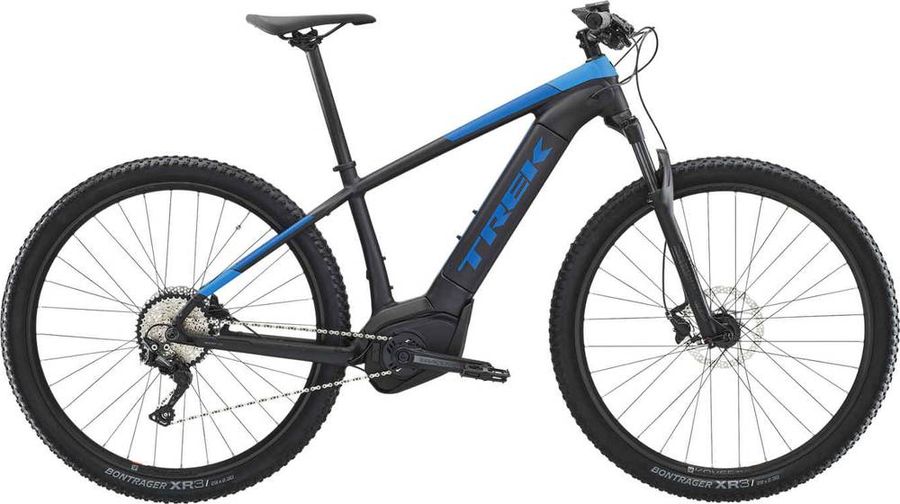

Trek Powerfly 5 2019

About the Trek Powerfly 5 2019

The Trek Powerfly 5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 22,91 kg.

Features

The Trek Powerfly 5 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Endurance Elite
Components
Saddle
Bontrager Arvada
Seatpost
Bontrager Alloy, 2-bolt head, 31.6mm, 12mm offset
Brakes
Shimano BL-MT200
Handlebar
Bontrager Alloy, 31.8mm, 15mm rise, 750mm width
Headset
FSA IS-2, 1-1/8˝ top, 1.5˝ bottom
Battery
Bosch PowerTube 500Wh
Steam
Bontrager Alloy, 31.8mm
Drivetrain
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Crankset
FSA 310
Motor
Bosch Performance CX
Frameset
Front suspension
RockShox Judy Silver
Frame
Trek Alpha Platinum Aluminum
Wheels
Tires
Bontrager XR3 29x2.30
Rims
Bontrager Kovee
Rear hub
Bontrager sealed bearing alloy axle, Boost148
Front hub
Bontrager Boost110

Geometry

Size 15.5" 17.5" 19.5" 21.5"
a
Seat tube length
394,0
419,0
470,0
521,0
b
Seat tube angle
72,5º
73,6º
73,6º
73,6º
c
Top tube length
557,0
589,0
630,0
661,0
d
Head tube length
120,0
120,0
140,0
160,0
e
Head tube angle
68,5º
69,6º
69,6º
69,6º
f
Rake
51,0
51,0
50,0
52,0
g
Trail
94,0
83,0
83,0
83,0
h
Wheelbase
1114,0
1154,0
1195,0
1228,0
i
Chainstay length
459,0
479,0
479,0
479,0
j
Bottom bracket drop
46,0
54,0
54,0
54,0
k
Stack height
591,0
614,0
632,0
650,0
l
Reach
379,0
407,0
442,0
467,0
m
Standover height
760,0
774,0
779,0
812,0
x
Bottom bracket height
310,0
316,0
316,0
316,0
y
Front center
659,0
680,0
721,0
754,0
