BikeWise

Trek Powerfly FS 5 2019

E-Bike
MTB Trail
2019 / 2020
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,81 kg
Front travel
130mm
Rear travel
130mm

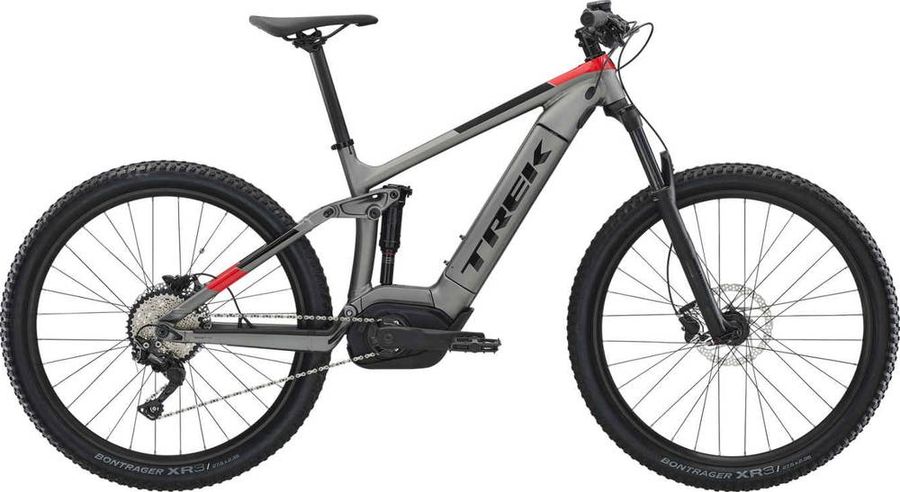

Trek Powerfly FS 5 2019

About the Trek Powerfly FS 5 2019

The Trek Powerfly FS 5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 23,81 kg.

Features

The Trek Powerfly FS 5 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp
Pedals
VP VX536
Components
Saddle
Bontrager Arvada
Headset
Trek Knock Block Integrated
Steam
Bontrager Rhythm Comp
Seatpost
Bontrager Alloy, 2-bolt head, 31.6mm, 12mm offset
Brakes
Shimano BL-MT200
Handlebar
Bontrager Alloy, 31.8mm, 15mm rise, 750mm width
Battery
Bosch PowerTube 500Wh
Drivetrain
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Crankset
FSA 310
Motor
Bosch Performance CX
Frameset
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Frame
Trek Alpha Platinum Aluminum
Wheels
Tires
Bontrager XR3, 27.5x2.35"
Rims
Bontrager Kovee
Rear hub
Bontrager sealed bearing alloy axle, Boost148
Front hub
Bontrager Boost110

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
368,0
368,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,9º
74,4º
74,8º
74,4º
74,8º
74,4º
74,8º
74,3º
74,8º
74,3º
c
Top tube length
572,0
572,0
602,0
602,0
622,0
622,0
636,0
636,0
664,0
664,0
d
Head tube length
100,0
100,0
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
67,4º
66,9º
67,4º
66,9º
67,4º
66,9º
67,4º
66,9º
67,4º
66,9º
f
Rake
61,0
51,0
56,0
51,0
49,0
52,0
52,0
52,0
51,0
53,0
g
Trail
93,0
96,0
93,0
96,0
93,0
96,0
93,0
96,0
93,0
96,0
h
Wheelbase
1178,0
1179,0
1209,0
1209,0
1229,0
1230,0
1244,0
1245,0
1274,0
1275,0
i
Chainstay length
476,0
476,0
476,0
476,0
476,0
476,0
476,0
476,0
476,0
476,0
j
Bottom bracket drop
18,0
24,0
18,0
24,0
18,0
24,0
18,0
24,0
18,0
24,0
k
Stack height
591,0
596,0
590,0
595,0
594,0
600,0
594,0
604,0
611,0
618,0
l
Reach
401,0
407,0
437,0
437,0
463,0
455,0
475,0
468,0
499,0
492,0
m
Standover height
772,0
767,0
762,0
757,0
750,0
745,0
748,0
743,0
760,0
755,0
x
Bottom bracket height
333,0
327,0
333,0
327,0
333,0
327,0
333,0
327,0
333,0
327,0
y
Front center
703,0
704,0
734,0
734,0
754,0
755,0
769,0
770,0
799,0
800,0
