Bianchi Magma 9.1 2019

MTB Cross Country
2019 / 2020
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

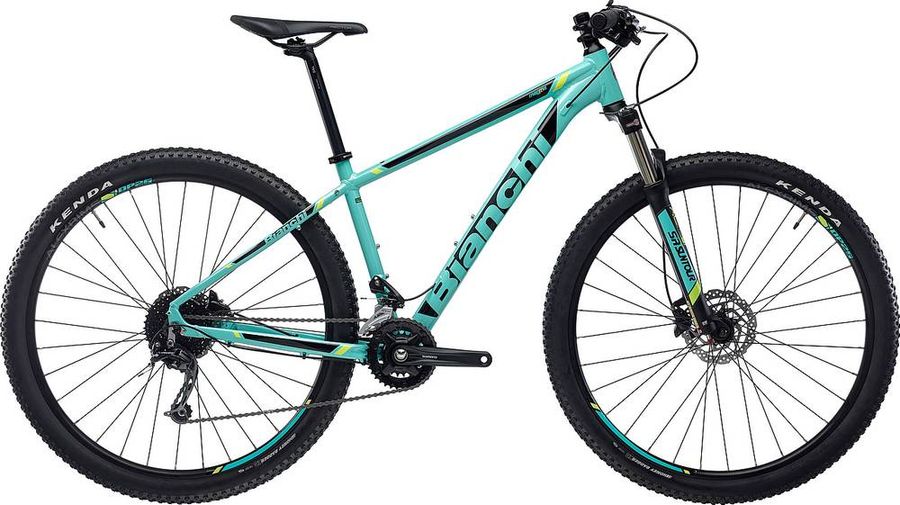

Bianchi Magma 9.1 2019

About the Bianchi Magma 9.1 2019

The Bianchi Magma 9.1 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9). Its features include internal routing e hydraulic disc brakes.

Features

The Bianchi Magma 9.1 2019 has 2 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
Tec Rector
Steam
Tec Obvius Ally
Discs
Shimano SM-RT10 160mm
Seatpost
Tec Obvius Alloy
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Handlebar
Tec Obvius Alloy
Headset
FSA Integrado
Drivetrain
Crankset
Shimano FC-MT210
Chain
KMC 9v
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Bottom bracket
Shimano SM-BB52
Adapter finish
Painted
Adapter material
Aluminum
Hollowtech II (threaded)
Model
SM-BB52
Spacer material
Resin
Shell width (mm)
68
73
Front derailleur
Shimano Acera FD-M3000
action.top_swing
applicable_top_mid_tooth_difference
10T
cable_route_type.dual_pull
Chain guide finish
Chrome plated
Chain guide material
Steel
Primary color
Series color
Compatible chain
HG 9-speed
front_clamp_band.finish
Painted
front_clamp_band.material
Steel
Inner link finish
Painted
Inner link material
Steel
Model
FD-M3000-TS6
Outer link finish
Painted
Outer link material
Steel
Rear clamp band base bracket finish
Painted
Rear clamp band base bracket material
Steel
Stroke adjusting screw finish
Zinc plated
Stroke adjusting screw material
Steel
Total capacity
18T
Shifter
Shimano Acera SL-M3000 RAPIDFIRE PLUS
Base cover material
Resin
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
MTB 9-speed
Compatible with I spec
Main lever body material
Steel & Resin
Max multiple shifts main lever rear
3
Model
SL-M3000-R
Mount type
Clamp band
Optical gear display
With
Speeds
9
release_lever_body.material
Steel & Resin
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
Standard
Shifting lever cable material
Steel*
Shifting lever cable adjust
Cassette
Shimano CS-HG200
Frameset
Frame
Bianchi 29" Alumínio
Front suspension
SR Suntour XCR 32
Wheels
Rear hub
Formula FH-MT200
Tires
Kenda Honey Badger XC
Front hub
Formula CL-1420

Geometry

Size 15" 17" 19" 21"
a
Seat tube length
381,0
432,0
483,0
533,0
b
Seat tube angle
74,0º
73,5º
73,5º
73,5º
c
Top tube length
568,0
588,0
613,0
633,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
53,0
52,0
51,0
51,0
g
Trail
83,0
85,0
86,0
86,0
h
Wheelbase
1110,0
1124,0
1150,0
1170,0
i
Chainstay length
458,0
458,0
458,0
458,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
607,0
614,0
624,0
633,0
l
Reach
392,0
405,0
428,0
445,0
m
Standover height
-
-
-
-
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
658,0
672,0
698,0
719,0
