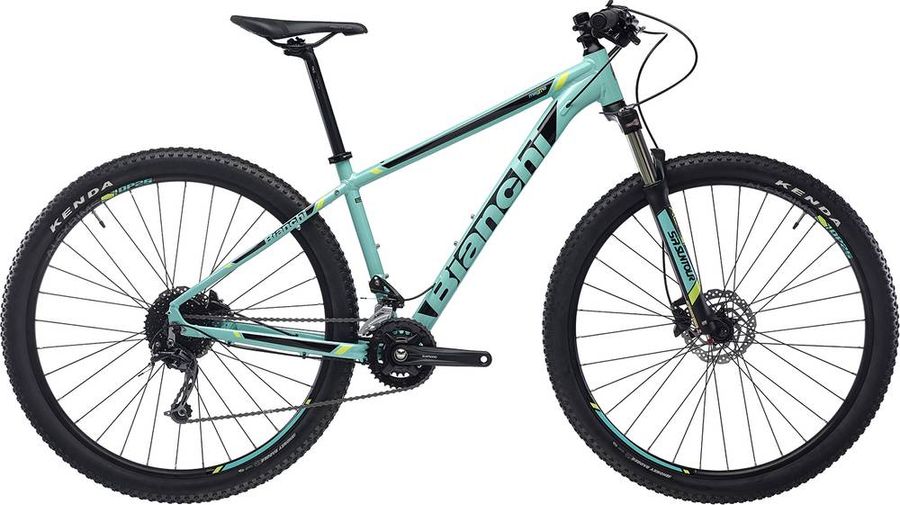

Bianchi Magma 9.1 2020

MTB Cross Country

2019 / 2020

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

About the Bianchi Magma 9.1 2020

The Bianchi Magma 9.1 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Bianchi Magma 9.1 2020 has 3 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Specifications

Acessories
Grip	T-one GP48B

Components
Seatpost	Tec Obvius Al2014
Saddle	Tec Rector
Discs	Shimano SM-RT10 160mm
Headset	FSA TH888
Handlebar	Tec Obvius flat DB
Steam	Tec Obvius 3D
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Shimano FC-MT210
Chain	KMC 9v
Front derailleur	Shimano Alivio FD-M4020
Action side swing Cable route type front pull Chain guide finish Chrome plated Chain guide material Steel Primary color Series color Compatible chain HG 9-speed front_clamp_band.finish Painted front_clamp_band.material Steel Inner link finish Painted Inner link material Aluminum Link bushings 4 Model FD-M4020-M Outer link finish Painted Outer link material Steel Rear clamp band base bracket finish Painted Rear clamp band base bracket material Aluminum Stroke adjusting screw material Stainless steel Total capacity 14T
Rear derailleur	Shimano Deore RD-M592 SGS 9s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Cable fixing bolt finish Plated Cable fixing bolt material Steel Compatible chain HG 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M592-SGS P axle material Steel Pulley bolts material Stainless steel Sunken type pulley bolt Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T
Bottom bracket	Shimano SM-BB52
Adapter finish Painted Adapter material Aluminum Hollowtech II (threaded) Model SM-BB52 Spacer material Resin Shell width (mm) 68 73
Shifter	Shimano Acera SL-M3000 RAPIDFIRE PLUS
Base cover material Resin Clamp bolt material Stainless steel Primary color Series color Compatible rear derailleur type MTB 9-speed Compatible with I spec Main lever body material Steel & Resin Max multiple shifts main lever rear 3 Model SL-M3000-R Mount type Clamp band Optical gear display With Speeds 9 release_lever_body.material Steel & Resin Shifter type RAPIDFIRE PLUS Shifting lever bracket finish Painted Shifting lever bracket material Aluminum Shifting lever cable finish Standard Shifting lever cable material Steel* Shifting lever cable adjust
Cassette	Shimano CS-HG200
