Bianchi Magma 9S 2020

MTB Cross Country

Groupset

SRAM SX Eagle

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

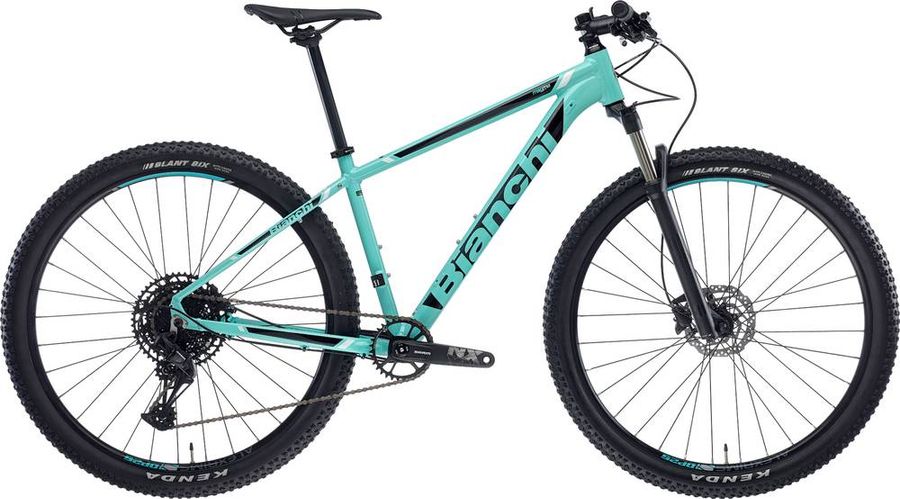

About the Bianchi Magma 9S 2020

The Bianchi Magma 9S 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Bianchi Magma 9S 2020 has 4 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Remote lockout More info

Specifications

Acessories
Grip	T-one GP48B

Components
Saddle	Tec Rector
Discs	Shimano SM-RT10 160mm
Seatpost	Tec Alloy
Headset	FSA TH888
Handlebar	Tec Obvius flat DB
Steam	Tec Obvius 3D
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Shifter	SRAM SX Eagle
Chain	SRAM SX Eagle
Cassette	SRAM SX Eagle PG1210
Bottom bracket	SRAM DUB
Rear derailleur	SRAM SX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-SX-1-A1 Name SX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s
Crankset	SRAM X1 Eagle

Frameset
Front suspension	RockShox TK30 Silver
Frame	Bianchi 29" Alumínio

Wheels
Tires	Kenda Booster 29x2.20
Front hub	Formula CL-1420
Rims	Alexrims DP2.5
Rear hub	Shimano FH-MT200-B
Axle material Steel Axle fixing method Quick release Brake type Center lock disc brake Hub shell color Black Without external serration disc rotor lock ring Flange diameter (mm) 53.8 Flange distance (mm) 63.4 Freehub body material Steel Hub shell finish Painted Hub shell material Aluminum Without external serration disc rotor lock ring Model FH-MT200-B Offset (mm) 6.65 Over locknut dimension (mm) 141 PCD left right (mm) 45/45 Quick release housing finish Painted Quick release housing material Steel Quick release lever finish Plated Quick release lever material Steel Quick release nut material Steel + Resin Seal Contact Spoke hole 28H 32H 36H
