BikeWise

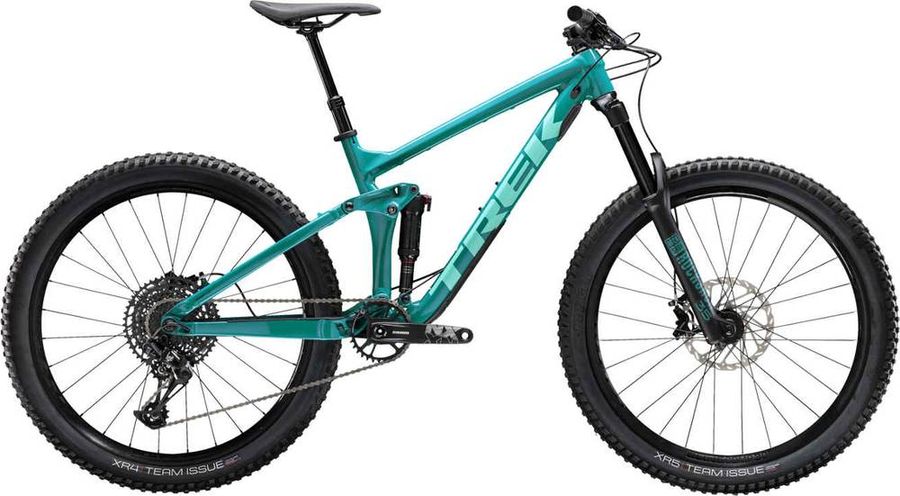

Trek Remedy 7 2020

MTB Enduro
2019 / 2020
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,68 kg
Front travel
160mm
Rear travel
150mm
Trek Remedy 7 2020

About the Trek Remedy 7 2020

The Trek Remedy 7 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 14,68 kg.

Features

The Trek Remedy 7 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp
Components
Seatpost
TranzX JD-YSP18
Saddle
Bontrager Arvada
Steam
Bontrager Rhythm Comp
Discs
Avid G2 Cleansweep 200mm
Handlebar
Bontrager Rhythm Comp, 31.8mm, 15mm rise
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Bottom bracket
SRAM DUB PressFit BB92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Crankset
SRAM NX Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum, Steel
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-NX-1-B1
Name
NX Eagle Crankset
Speeds
11/12
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Shifter
SRAM NX Eagle
Frameset
Front suspension
RockShox 35 Gold
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Tires
Bontrager XR5 Team Issue, 29x2.60''
Rims
Bontrager Line Comp 30

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
c
Top tube length
554,0
556,0
580,0
582,0
597,0
598,0
618,0
619,0
642,0
643,0
d
Head tube length
95,0
95,0
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
66,1º
65,5º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
f
Rake
90,0
46,0
90,0
46,0
90,0
47,0
90,0
46,0
90,0
46,0
g
Trail
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
h
Wheelbase
1133,0
1134,0
1160,0
1161,0
1177,0
1178,0
1199,0
1,2e3
1225,0
1226,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
k
Stack height
577,0
581,0
582,0
586,0
586,0
590,0
591,0
595,0
604,0
609,0
l
Reach
395,0
389,0
420,0
414,0
435,0
429,0
455,0
449,0
475,0
469,0
m
Standover height
733,0
728,0
765,0
760,0
767,0
762,0
764,0
759,0
769,0
763,0
x
Bottom bracket height
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
y
Front center
722,0
705,0
749,0
732,0
766,0
749,0
788,0
771,0
814,0
797,0
