Trek Remedy 9.9 2019

MTB Enduro
2019 / 2020
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,61 kg
Front travel
160mm
Rear travel
150mm

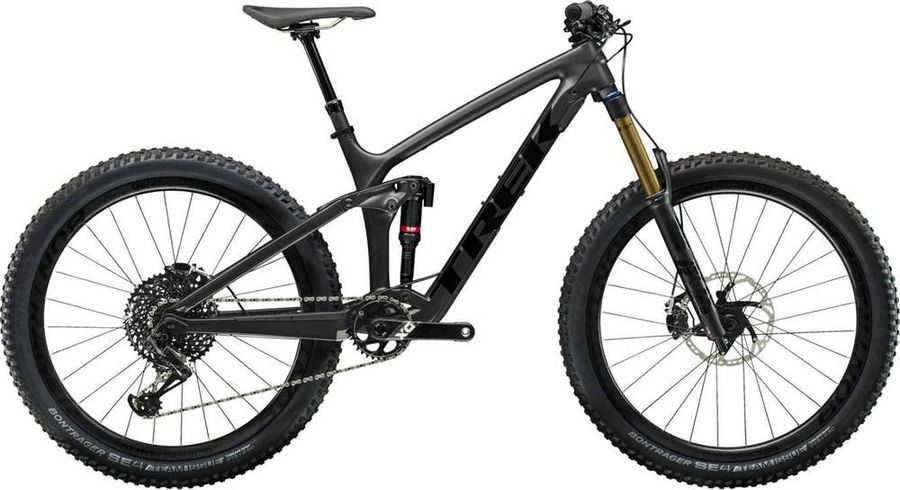

Trek Remedy 9.9 2019

About the Trek Remedy 9.9 2019

The Trek Remedy 9.9 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 12,61 kg.

Features

The Trek Remedy 9.9 2019 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite
Components
Brake lever
Shimano Deore XT BL-M8000 104 g Hydraulic disc brake SHIMANO Mineral Oil
Average weight (g)
104
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake lever finish
Anodized
Brake lever material
Aluminum
Brake type
Hydraulic disc brake
Primary color
Series color
Funnel bleeding
Lever size finger
2
Master cylinder finish
Painted
Master cylinder material
Aluminum
Model
BL-M8000
Oil
SHIMANO Mineral
Reach adjust (toolless)
Saddle
Bontrager Arvada
Headset
Trek Knock Block Integrated
Steam
Bontrager Line Pro
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Seatpost
Bontrager Line
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Drivetrain
Crankset
SRAM X01 Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
BB30A
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
BB spindle interface
24mm, 30mm
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T, 36T, 38T
Crank arm length
170mm, 175mm
Model
FC-X0-1-B1
Name
X01 Eagle™ Crankset
Speeds
11/12
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Bottom bracket
SRAM DUB PressFit BB92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Shifter
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
Fox 36 Float Factory
Frame
Trek OCLV Mountain Carbon
Wheels
Rims
Bontrager Line Carbon 30
Front hub
Bontrager Line Carbon
Tires
Bontrager SE4 Team Issue 27.5x2.60˝
Rear hub
Bontrager Line Carbon

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
c
Top tube length
554,0
556,0
580,0
582,0
597,0
598,0
618,0
619,0
642,0
643,0
d
Head tube length
95,0
-
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
f
Rake
45,0
46,0
45,0
45,0
45,0
45,0
45,0
45,0
45,0
45,0
g
Trail
111,0
115,0
111,0
115,0
111,0
115,0
111,0
115,0
111,0
115,0
h
Wheelbase
1133,0
1134,0
1160,0
1161,0
1177,0
1178,0
1199,0
1,2e3
1225,0
1226,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
9,0
16,0
9,0
16,0
9,0
16,0
9,0
16,0
9,0
16,0
k
Stack height
577,0
581,0
582,0
586,0
586,0
590,0
591,0
595,0
604,0
609,0
l
Reach
395,0
389,0
420,0
414,0
435,0
429,0
455,0
449,0
475,0
469,0
m
Standover height
729,0
724,0
761,0
755,0
758,0
752,0
758,0
752,0
768,0
762,0
x
Bottom bracket height
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
y
Front center
706,0
705,0
733,0
732,0
750,0
749,0
772,0
771,0
798,0
797,0
