Trek Remedy 9.7 2019

MTB Enduro
2019 / 2020
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,61 kg
Front travel
160mm
Rear travel
150mm

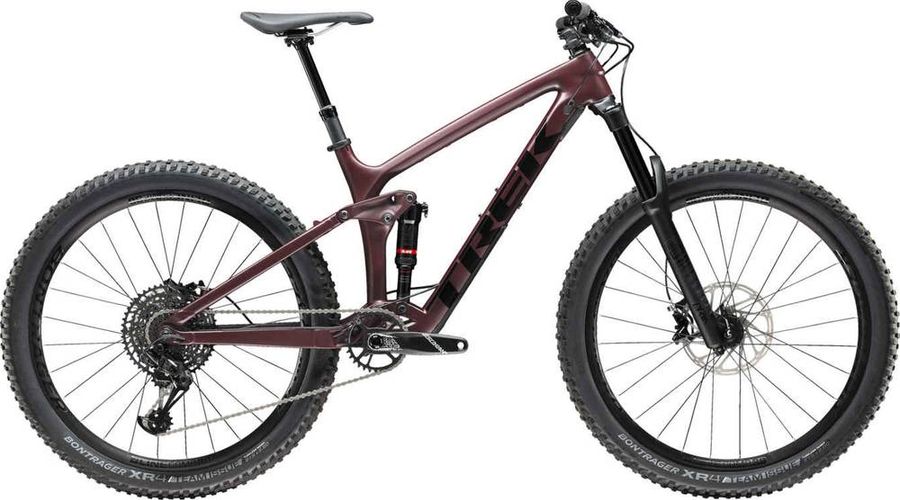

Trek Remedy 9.7 2019

About the Trek Remedy 9.7 2019

The Trek Remedy 9.7 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,61 kg.

Features

The Trek Remedy 9.7 2019 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite
Components
Saddle
Bontrager Arvada
Headset
Trek Knock Block Integrated
Handlebar
Bontrager Line, 35mm, 27.5mm rise, 780 width
Seatpost
Bontrager Line
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Steam
Bontrager Line
Drivetrain
Bottom bracket
SRAM DUB PressFit BB92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Crankset
Truvativ Descendant DUB 11/12s 555 g
BB compatibility
DUB BSA73
DUB PF89.5
DUB PF92
DUB PF30 MTB73
DUB BB30 MTB73
DUB:BSA73
PF89.5
PF92
PF30 MTB73
BB30 MTB73
BSA MTB68SP
BB spindle interface
DUB
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 55.0mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-DESC-C-B1
Name
DESCENDANT Carbon DUB™ Crankset
Speeds
11/12
Weight
555
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Shifter
SRAM NX Eagle
Frameset
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Frame
Trek OCLV Mountain Carbon
Wheels
Rims
Bontrager Line Comp 30
Tires
Bontrager XR4 Team Issue 27.5x2.60˝

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
c
Top tube length
554,0
556,0
580,0
582,0
597,0
598,0
618,0
619,0
642,0
643,0
d
Head tube length
95,0
-
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
66,0º
65,5º
f
Rake
45,0
46,0
45,0
45,0
45,0
45,0
45,0
45,0
45,0
45,0
g
Trail
111,0
115,0
111,0
115,0
111,0
115,0
111,0
115,0
111,0
115,0
h
Wheelbase
1133,0
1134,0
1160,0
1161,0
1177,0
1178,0
1199,0
1,2e3
1225,0
1226,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
9,0
16,0
9,0
16,0
9,0
16,0
9,0
16,0
9,0
16,0
k
Stack height
577,0
581,0
582,0
586,0
586,0
590,0
591,0
595,0
604,0
609,0
l
Reach
395,0
389,0
420,0
414,0
435,0
429,0
455,0
449,0
475,0
469,0
m
Standover height
729,0
724,0
761,0
755,0
758,0
752,0
758,0
752,0
768,0
762,0
x
Bottom bracket height
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
y
Front center
706,0
705,0
733,0
732,0
750,0
749,0
772,0
771,0
798,0
797,0
