Trek Top Fuel 9.7 2021

MTB Trail
2020 / 2021
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,65 kg
Front travel
120mm
Price
$3,999.99

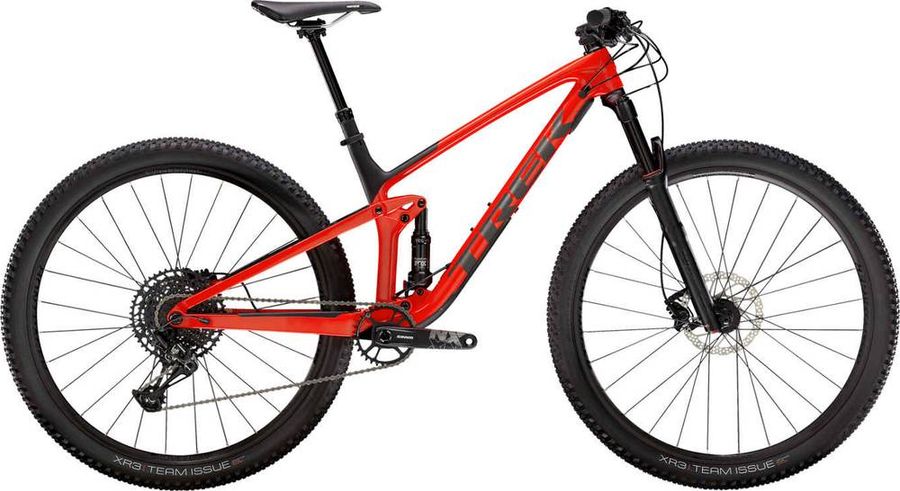

Trek Top Fuel 9.7 2021

About the Trek Top Fuel 9.7 2021

The Trek Top Fuel 9.7 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 12,65 kg.

Features

The Trek Top Fuel 9.7 2021 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Discs
Shimano RT56 160mm
Headset
Trek Knock Block Integrated
Seatpost
Bontrager Line Dropper
Steam
Bontrager Rhythm Comp
Saddle
Bontrager Montrose Comp
Handlebar
Bontrager Alloy, 31.8mm, 15mm rise, 750mm width
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Bottom bracket
SRAM DUB PressFit BB92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Crankset
SRAM NX Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum, Steel
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-NX-1-B1
Name
NX Eagle Crankset
Speeds
11/12
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Shifter
SRAM NX Eagle
Frameset
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
Fox Float Performance
Wheels
Front hub
Bontrager sealed bearing
Rims
Bontrager Kovee
Tires
Bontrager XR3 Team Issue, 29x2.40''

Geometry

Size 15.5" High 15.5" High 15.5" Low 15.5" Low 17.5" High 17.5" High 17.5" Low 17.5" Low 18.5" High 18.5" High 18.5" Low 18.5" Low 19.5" High 19.5" High 19.5" Low 19.5" Low 21.5" High 21.5" High 21.5" Low 21.5" Low 23.5" High 23.5" High 23.5" Low 23.5" Low
a
Seat tube length
394,0
394,0
394,0
394,0
419,0
419,0
419,0
419,0
445,0
445,0
445,0
445,0
470,0
470,0
470,0
470,0
521,0
521,0
521,0
521,0
570,0
570,0
570,0
570,0
b
Seat tube angle
75,5º
75,5º
75,0º
75,0º
75,5º
75,5º
75,0º
75,0º
75,5º
75,5º
75,0º
75,0º
75,5º
75,5º
75,0º
75,0º
75,5º
75,5º
75,0º
75,0º
75,5º
75,5º
75,0º
75,0º
c
Top tube length
557,0
557,0
558,0
558,0
592,0
592,0
593,0
593,0
608,0
608,0
609,0
609,0
624,0
624,0
626,0
626,0
644,0
644,0
645,0
645,0
669,0
669,0
671,0
671,0
d
Head tube length
90,0
90,0
90,0
90,0
90,0
90,0
90,0
90,0
90,0
90,0
90,0
90,0
100,0
100,0
100,0
100,0
110,0
110,0
110,0
110,0
120,0
120,0
120,0
120,0
e
Head tube angle
68,0º
68,0º
67,5º
67,5º
68,0º
68,0º
67,5º
67,5º
68,0º
68,0º
67,5º
67,5º
68,0º
68,0º
67,5º
67,5º
68,0º
68,0º
67,5º
67,5º
68,0º
68,0º
67,5º
67,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
43,0
43,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
103,0
103,0
107,0
107,0
103,0
103,0
107,0
107,0
103,0
103,0
107,0
107,0
103,0
103,0
107,0
107,0
103,0
103,0
107,0
107,0
103,0
103,0
107,0
107,0
h
Wheelbase
1111,0
1111,0
1111,0
1111,0
1146,0
1146,0
1146,0
1146,0
1162,0
1162,0
1162,0
1162,0
1179,0
1179,0
1180,0
1180,0
1,2e3
1,2e3
1201,0
1201,0
1227,0
1227,0
1228,0
1228,0
i
Chainstay length
428,0
428,0
429,0
429,0
428,0
428,0
429,0
429,0
428,0
428,0
429,0
429,0
428,0
428,0
429,0
429,0
428,0
428,0
429,0
429,0
428,0
428,0
429,0
429,0
j
Bottom bracket drop
30,0
30,0
36,0
36,0
30,0
30,0
36,0
36,0
30,0
30,0
36,0
36,0
29,0
29,0
36,0
36,0
29,0
29,0
36,0
36,0
29,0
29,0
36,0
36,0
k
Stack height
584,0
584,0
588,0
588,0
584,0
584,0
588,0
588,0
584,0
584,0
588,0
588,0
593,0
593,0
597,0
597,0
602,0
602,0
606,0
606,0
611,0
611,0
616,0
616,0
l
Reach
404,0
404,0
399,0
399,0
439,0
439,0
434,0
434,0
455,0
455,0
450,0
450,0
469,0
469,0
464,0
464,0
486,0
486,0
481,0
481,0
509,0
509,0
504,0
504,0
m
Standover height
725,0
724,0
719,0
719,0
730,0
729,0
724,0
724,0
725,0
735,0
719,0
729,0
745,0
745,0
739,0
739,0
765,0
765,0
759,0
759,0
780,0
780,0
774,0
774,0
x
Bottom bracket height
343,0
343,0
337,0
337,0
343,0
343,0
337,0
337,0
343,0
343,0
337,0
337,0
343,0
343,0
337,0
337,0
343,0
343,0
337,0
337,0
343,0
343,0
337,0
337,0
y
Front center
685,0
685,0
684,0
684,0
720,0
720,0
719,0
719,0
736,0
736,0
735,0
735,0
753,0
753,0
753,0
753,0
774,0
774,0
774,0
774,0
800,0
800,0
801,0
801,0
