Trek Top Fuel 9.8 XT 2020

MTB Cross Country
2020 / 2021
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,94 kg
Front travel
120mm
Rear travel
115mm

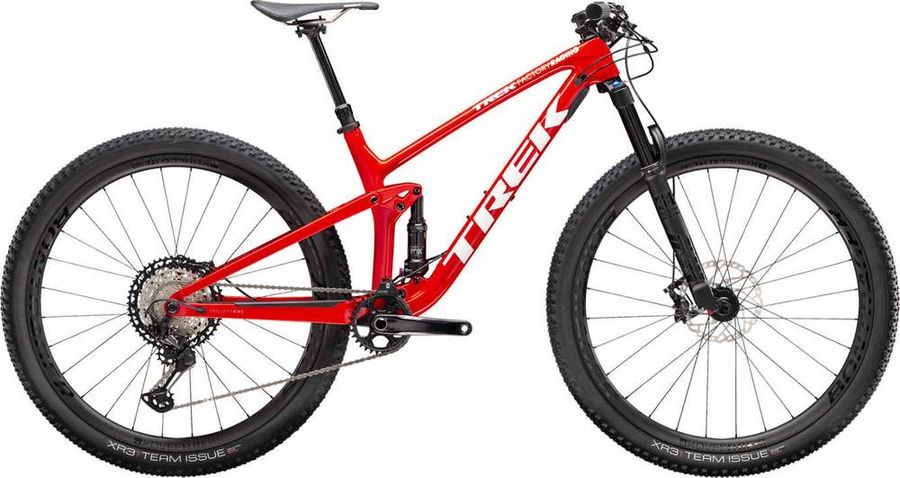

Trek Top Fuel 9.8 XT 2020

About the Trek Top Fuel 9.8 XT 2020

The Trek Top Fuel 9.8 XT 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 11,94 kg.

Features

The Trek Top Fuel 9.8 XT 2020 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Headset
Trek Knock Block Integrated
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Seatpost
Bontrager Line Elite Dropper
Steam
Bontrager Kovee Pro, 35mm, Knock Block
Discs
Shimano RT66 160/180mm
Handlebar
Bontrager Line Pro, OCLV Carbon
Saddle
Bontrager Montrose Elite
Drivetrain
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100
Crankset
Shimano XT FC-M8100
Rear derailleur
Shimano XT RD-M8100
Shifter
Shimano Deore XT SL-M8100 117 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
117 ( /pc)
Base cover finish
Painted
Base cover material
GFRP
Clamp bolt finish
Black
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
12-speed
Compatible with I spec
Main lever body finish
Painted
Main lever body material
Aluminum
Max multiple shifts main lever rear
4
Model
SL-M8100-R
Mount type
Clamp band
Optical gear display
Without
Speeds
12
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Bottom bracket
Shimano Press Fit
Frameset
Rear suspension
Fox Float Performance
Front suspension
Fox 34 Performance
Frame
Trek OCLV Mountain Carbon
Wheels
Rims
Bontrager Kovee Elite 30 Carbon
Tires
Bontrager XR3 Team Issue, 29x2.40''

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low 23.5" High 23.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
570,0
570,0
b
Seat tube angle
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
c
Top tube length
557,0
558,0
592,0
593,0
608,0
609,0
624,0
626,0
644,0
645,0
669,0
671,0
d
Head tube length
90,0
90,0
90,0
90,0
90,0
90,0
100,0
100,0
110,0
110,0
120,0
120,0
e
Head tube angle
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
68,0º
67,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
43,0
44,0
44,0
44,0
44,0
44,0
g
Trail
103,0
107,0
103,0
107,0
103,0
107,0
103,0
107,0
103,0
107,0
103,0
107,0
h
Wheelbase
1111,0
1111,0
1146,0
1146,0
1162,0
1162,0
1179,0
1180,0
1,2e3
1201,0
1227,0
1228,0
i
Chainstay length
428,0
429,0
428,0
429,0
428,0
429,0
428,0
429,0
428,0
429,0
428,0
429,0
j
Bottom bracket drop
30,0
36,0
30,0
36,0
30,0
36,0
29,0
36,0
29,0
36,0
29,0
36,0
k
Stack height
584,0
588,0
584,0
588,0
584,0
588,0
593,0
597,0
602,0
606,0
611,0
616,0
l
Reach
404,0
399,0
439,0
434,0
455,0
450,0
469,0
464,0
486,0
481,0
509,0
504,0
m
Standover height
724,0
719,0
729,0
724,0
735,0
729,0
745,0
739,0
765,0
759,0
780,0
774,0
x
Bottom bracket height
343,0
337,0
343,0
337,0
343,0
337,0
343,0
337,0
343,0
337,0
343,0
337,0
y
Front center
685,0
684,0
720,0
719,0
736,0
735,0
753,0
753,0
774,0
774,0
800,0
801,0
